BRIEF INTRODUCTION

------------ZHANGJIAGANG KAIDOO PLASTIC TECHNOLOGY CO.,LTD
Kaidoo Technology is located in the beautiful Riverside City - Zhangjiagang. The company use European and American technology, supply automatic blow molding machines,(suitable for the production of 5ML-3000L plastic bottles, plastic buckets, drum,tool box, toys, fuel tanks,table panel,plastic pallet,automobile part and other products), and supply Blow mould ,Injection mould,Auxiliary equipment. The company has a a large number of outstanding skilled workers and engineers with more than 10 years of design and manufacture of various hollow equipment and maintenance services experience.
We firmly believe that only the innovation can promote development, and only through cooperation we can find win-win solution. We are sincerely looking forward to working with you full cooperation!

ENTREPRISE CULTURE
Kaidoo Technology persisted "the talented as well as the staff is the first resources" idea,and "the science and technology is the development of the enterprise source power, the innovation is enterprise's soul" the management idea,in the staff the positive initiative "the unity cooperation,grows together" the team idea ;The initiative " the good faith, is highly effective, is satisfied" the service idea,carries out "the autonomy from, asks really to strive for realism" the staff personal integrity. Through a serious of enterprise culture construction, establishes one to have the cohesive force and the team cooperation spirit, the study high quality staff troop.

WORKSHOP

MACHINE SPECIFICATION

thickness controller that is easy for users to operate. It is used to control the thickness of

the parison in blow molding machines. It can be used for continuous die heads or storage

cylinder die heads, and can be used with current-type servo valves (such as MOOG

G631-3005B) or voltage-type servo valves (such as Bosch, Rexroth, Atos). Produce

lighter and more durable container products at a higher production rate.

A correctly installed and properly used system will enable your blow molding machine

to have higher operational efficiency, thereby achieving faster molding cycles, shorter

conversion times and less waste.

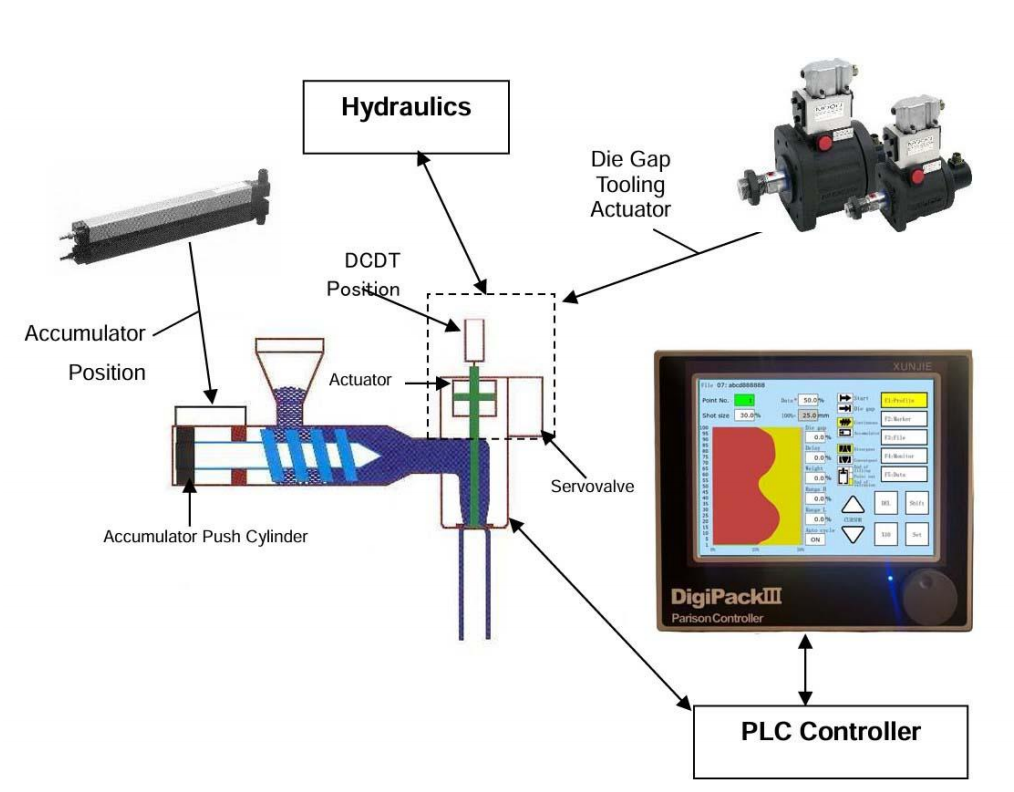

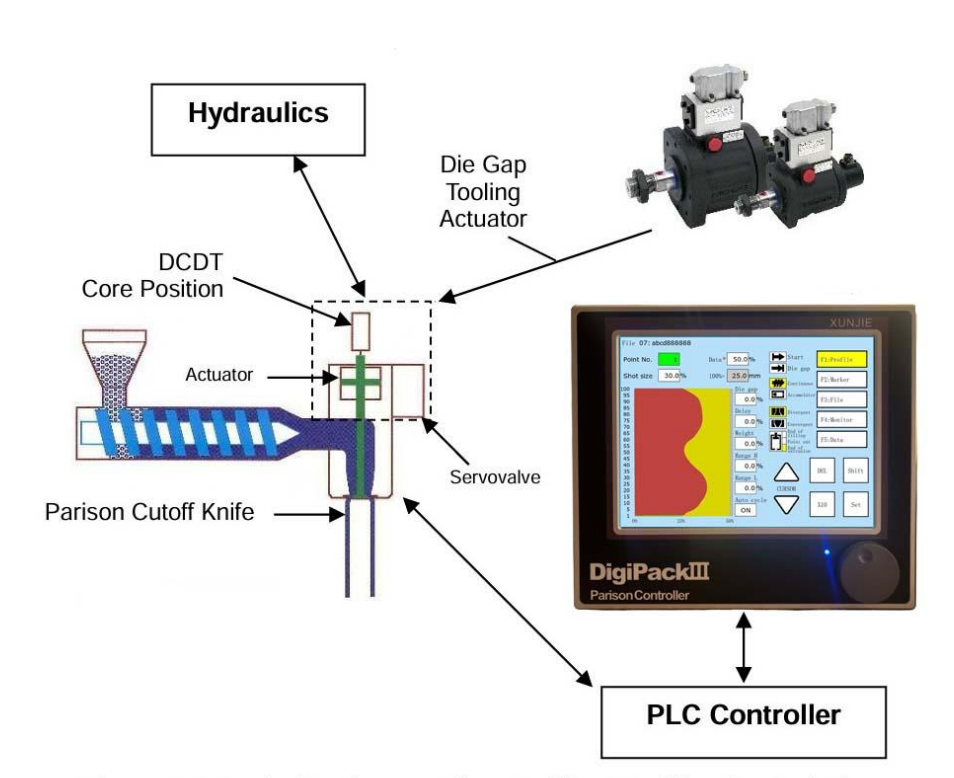

The Xunjie Digi200 Pack system consists of three main parts: the Xunjie Digi200 Pack

controller, the die actuator (servo valve), and the feedback sensor for measuring the die

opening. For the storage cylinder type blow molding machine, there is a storage cylinder

position feedback sensor. These three parts can be organically combined.

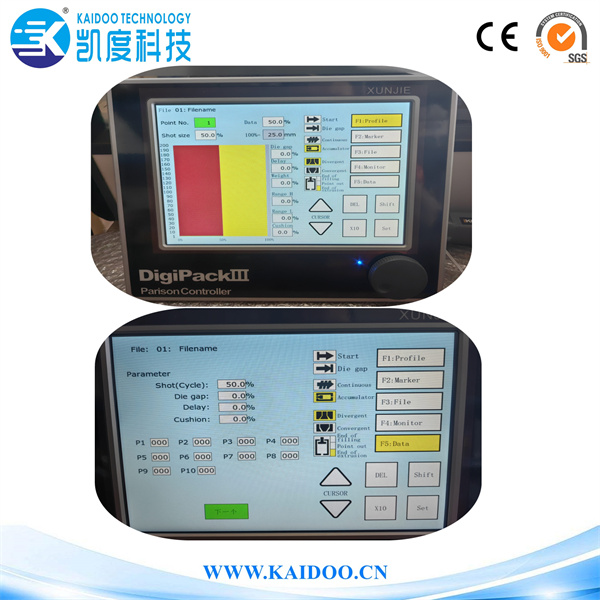

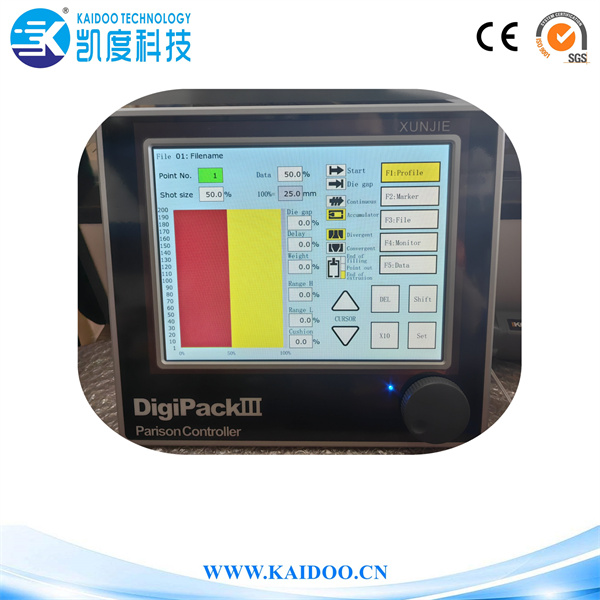

The operator sets the die opening required to obtain an ideal and uniform thickness

container through the Swift Digi200 Pack control panel.

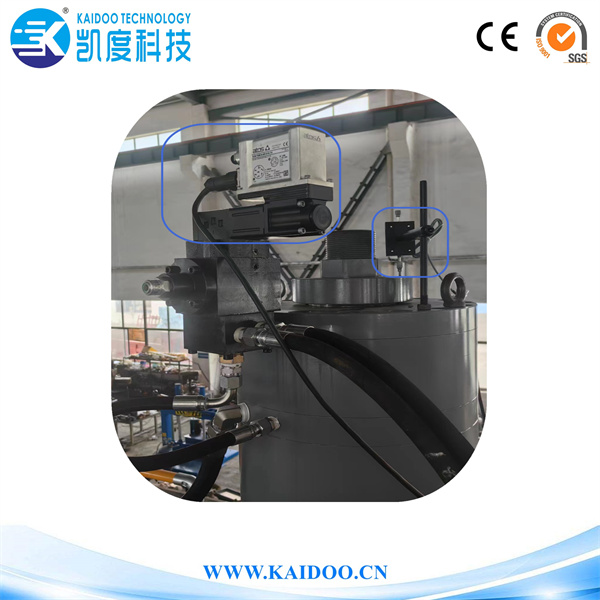

The die head actuator controls the flow rate based on the control signal sent by the

Xunjie Digi200 Pack controller, making the die head gap reach the value set by the

controller, thereby controlling the thickness of the parlet.

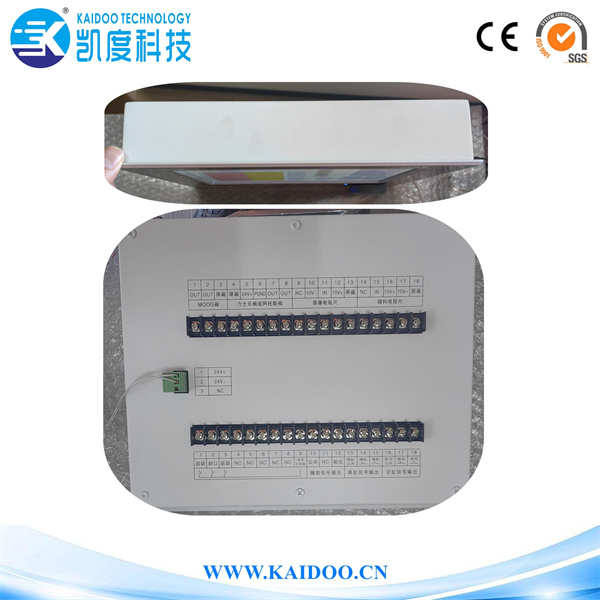

The Xunjie Digi200 Pack controller provides an analog interface for connection with the

PLC controller of the blow molding machine, forming a closed loop.
