BRIEF INTRODUCTION

------------ZHANGJIAGANG KAIDOO PLASTIC TECHNOLOGY CO.,LTD
Kaidoo Technology is located in the beautiful Riverside City - Zhangjiagang. The company use European and American technology, supply automatic blow molding machines,(suitable for the production of 5ML-3000L plastic bottles, plastic buckets, drum,tool box, toys, fuel tanks,table panel,plastic pallet,automobile part and other products), and supply Blow mould ,Injection mould,Auxiliary equipment. The company has a a large number of outstanding skilled workers and engineers with more than 10 years of design and manufacture of various hollow equipment and maintenance services experience.
We firmly believe that only the innovation can promote development, and only through cooperation we can find win-win solution. We are sincerely looking forward to working with you full cooperation!

ENTREPRISE CULTURE
Kaidoo Technology persisted "the talented as well as the staff is the first resources" idea,and "the science and technology is the development of the enterprise source power, the innovation is enterprise's soul" the management idea,in the staff the positive initiative "the unity cooperation,grows together" the team idea ;The initiative " the good faith, is highly effective, is satisfied" the service idea,carries out "the autonomy from, asks really to strive for realism" the staff personal integrity. Through a serious of enterprise culture construction, establishes one to have the cohesive force and the team cooperation spirit, the study high quality staff troop.

WORKSHOP

MACHINE SPECIFICATION

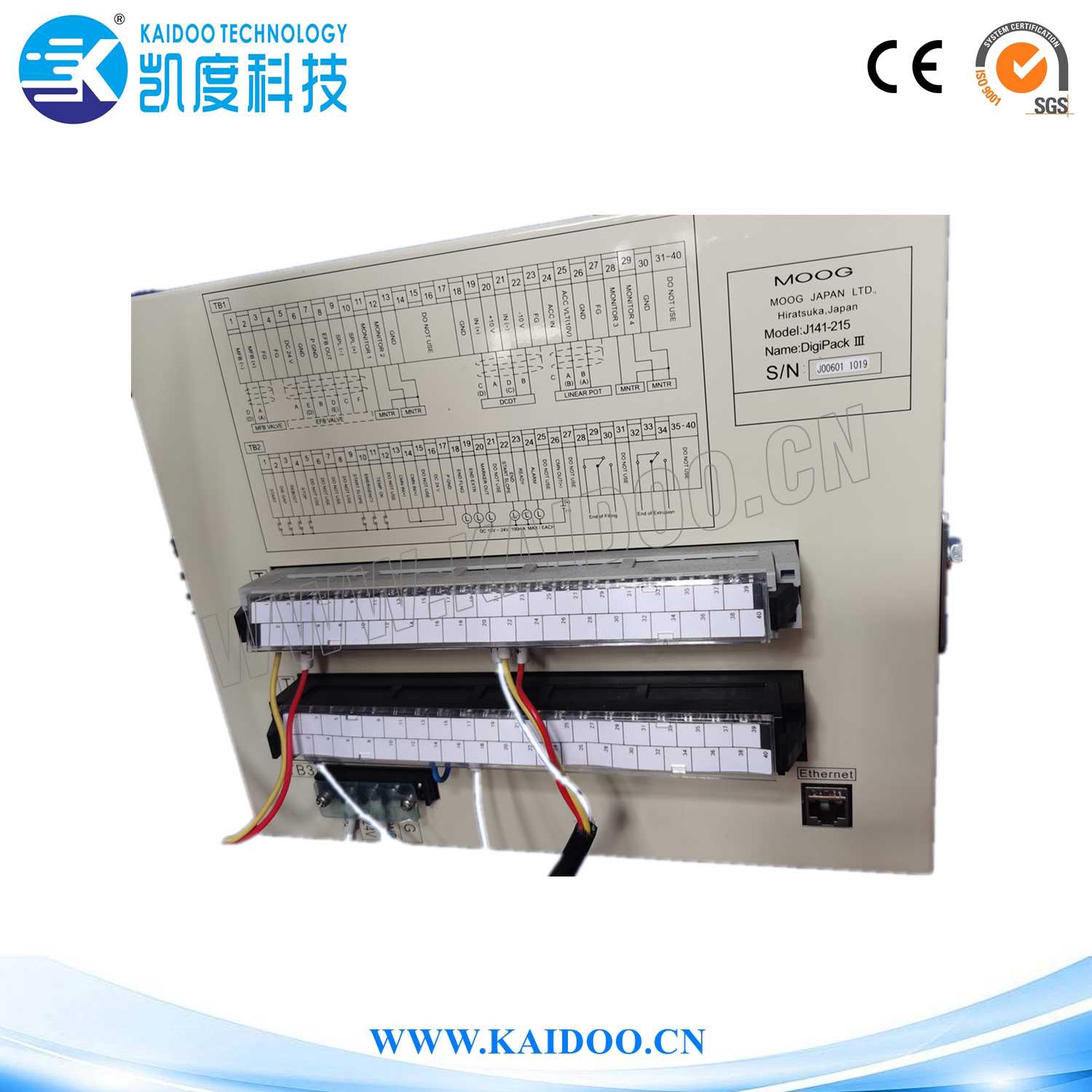

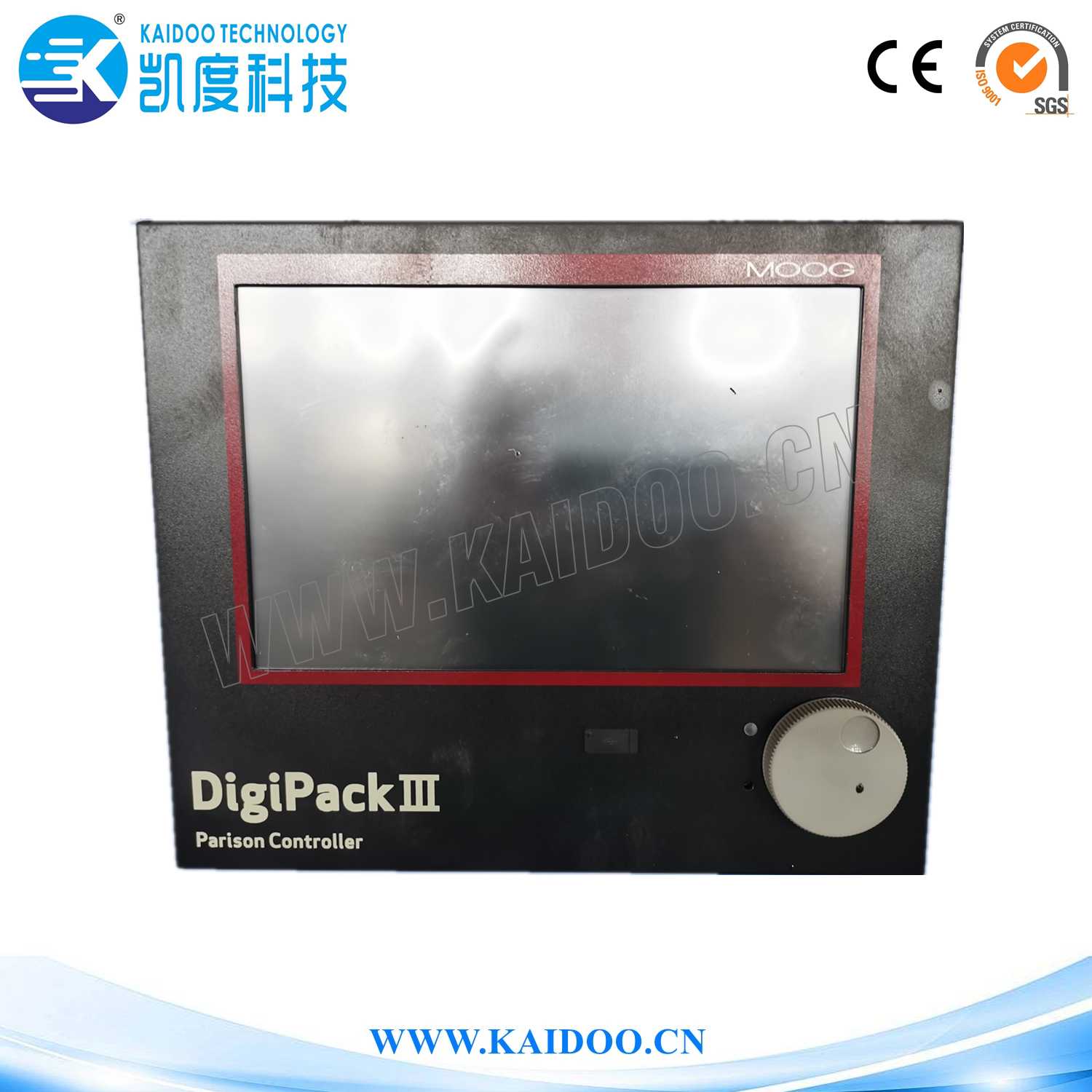

The J141-215 DigiPackⅢ is a user friendly, high performance 200 Point Digital Blow Molding Parison Wall Thickness controller producing lighter, stronger containers at increased production rates.
A properly installed and intelligently used system will deliver higher operating efficiency from your blow
molding machine as a result of faster molding cycles, shorter change over times and reduced scrap.
The DigiPackⅢ adjusts the parison wall thickness by controlling the core position with the core actuator.

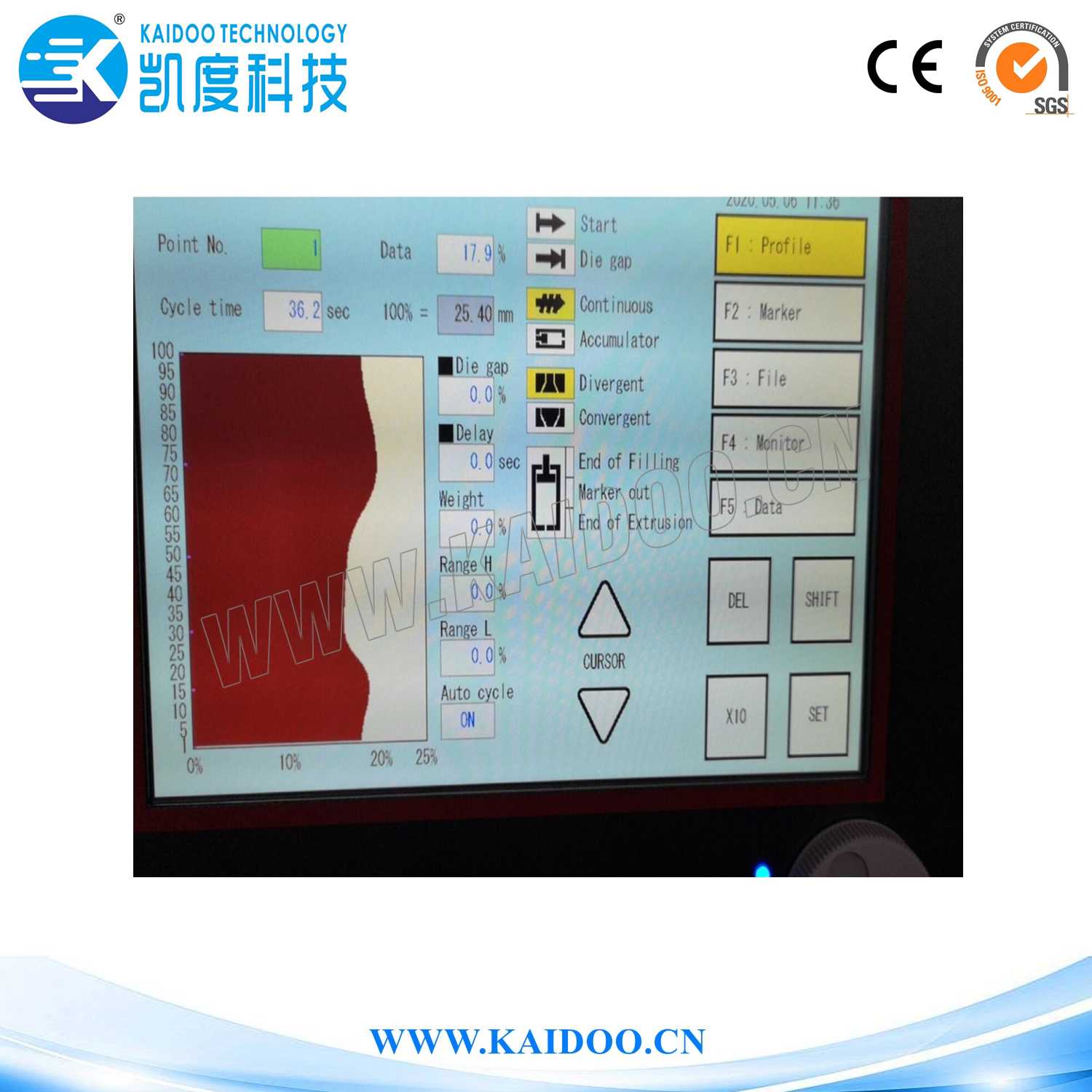

The core position can be finely set up to 200 points maximum.
For an accumulator type blow molding machine, set the target core position with reference to the accumulator position. For a continuous blow molding machine, set the target core position based on time.
The core position control system with the above setting consists of four main components: DigiPackⅢ
controller, servo valve, actuator for core and feedback detector for accumulator. The function of each component is as follows.
 Operator using DigiPackⅢ to set the core position (core die gap opening / closing amount) required
to obtain a product with the desired wall thickness (usually constant wall thickness). In addition, it
outputs a flow (spool position) command to the servo valve so that the core follows the set core
position.
DigiPackⅢ also functions as a digital interface with the PLC controller of the blow molding machine
and provides information such as the end of the program and the point status of sequential programs.
The servo valve adjusts the flow rate to the core actuator according to the flow (spool position) com?mand from DigiPackⅢ. The actuator for the core, the core is fixed to the rod, and the rod (core) moves according to the flow
rate adjusted by the servo valve. Moving the core changes the gap through which the parison passes
and controls the wall thickness of the parison.
This document is subject to MOOG INTELLECTUAL AND PROPRIETARY INFORMATION LEGEND . The details are on page II.
3 MRJ06301
Accumulator feedback detector is used for accumulator type blow molding machine. The DigiPackⅢ
changes the target core position while monitoring the signal from this detector.
